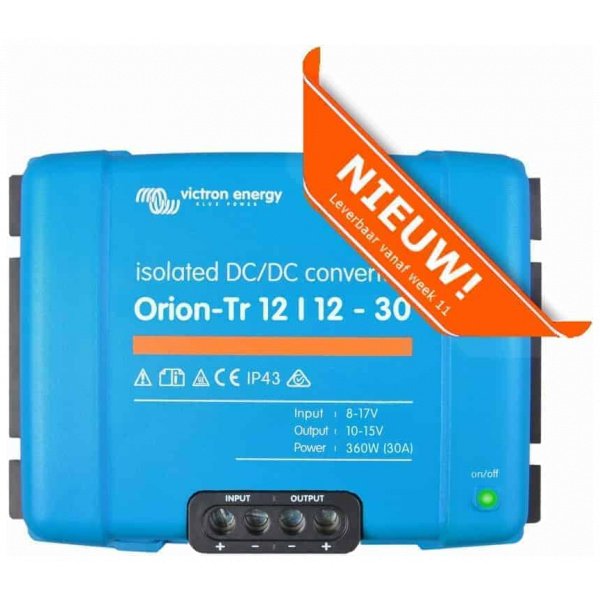

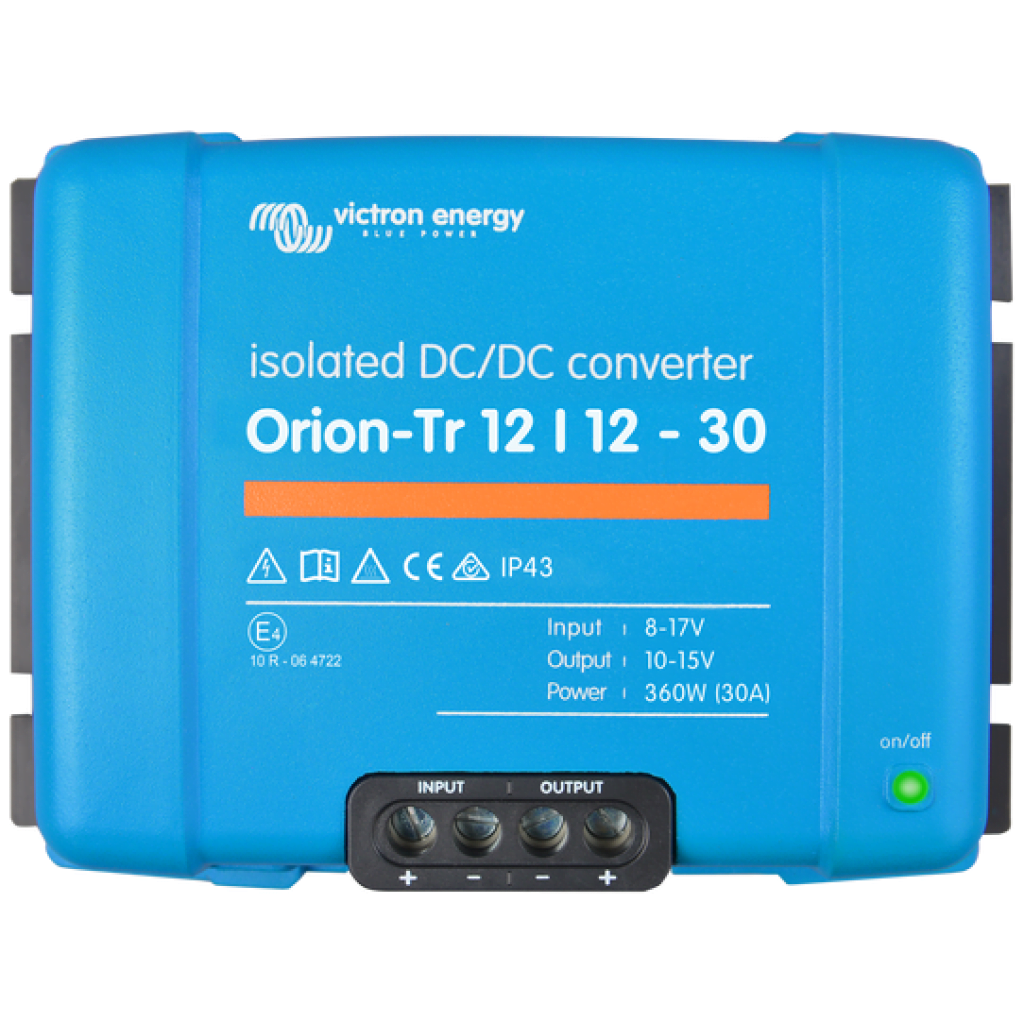

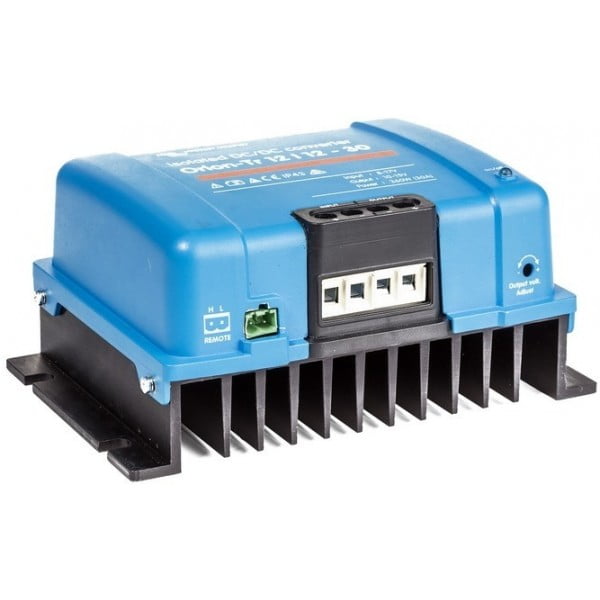

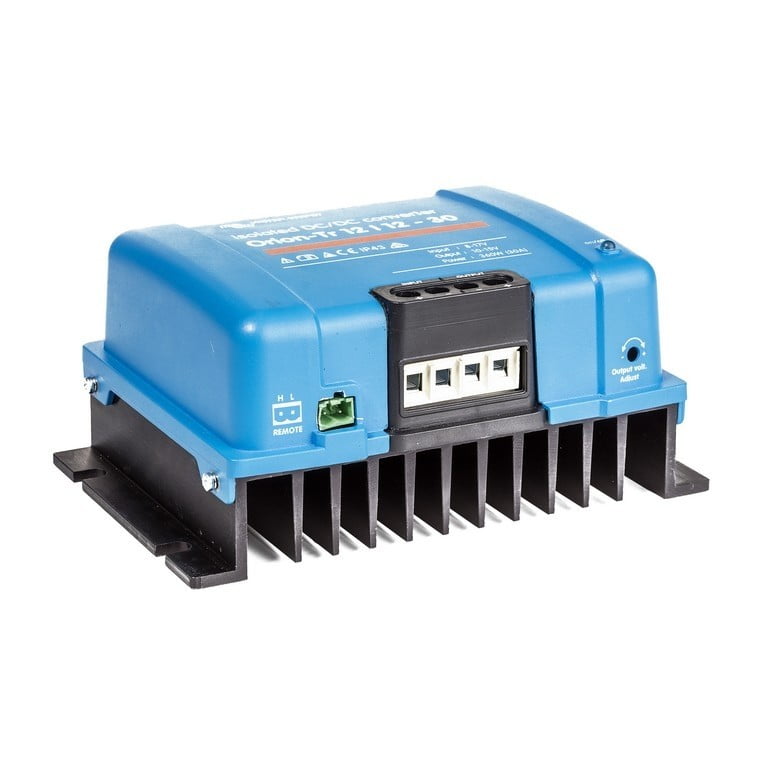

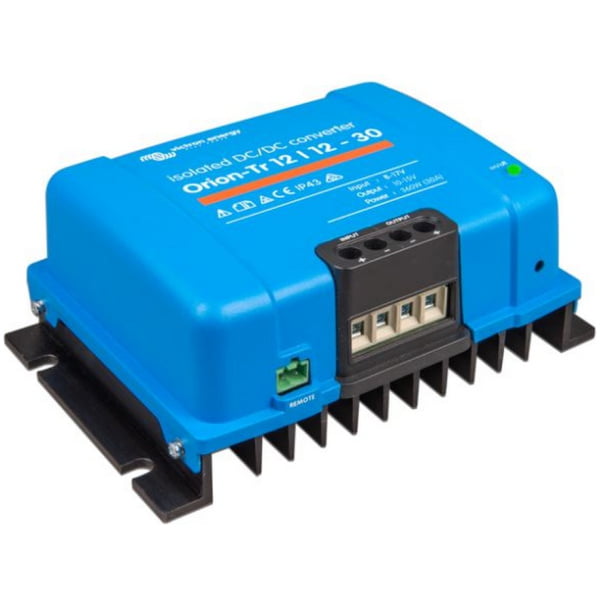

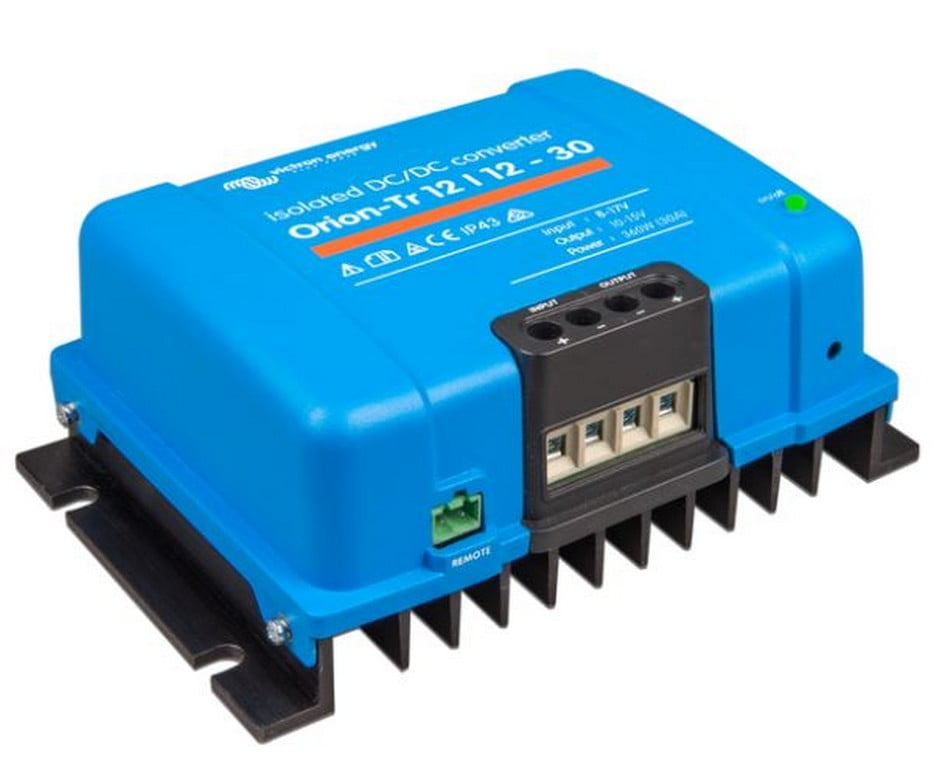

Orion-Tr DC-DC converter 12 / 12-30A (isolated) with a continuous output power of 360W.
This DC-DC converter has an input voltage range of 10-17V and an adjustable output voltage from 10 to 15V. The continuous output current at a nominal output voltage of 12.2V and 40 ° C is 30A. The completely separate circuit ensures galvanic separation between the two voltage sides, so that the input and output are completely isolated.
The inverter can also be used as a battery charger.
All Orion-Tr models are short-circuit proof and can be connected in parallel to increase output power.
The remote on-off eliminates the need for a high power switch in the input wiring. The remote on-off can be controlled with a low power switch or by, for example, the on / off switch of the motor (see manual).
When installed with the screw terminals facing down.
No special tools required for installation.
Input fuse (not replaceable)
Only on 12V and 24V models.
