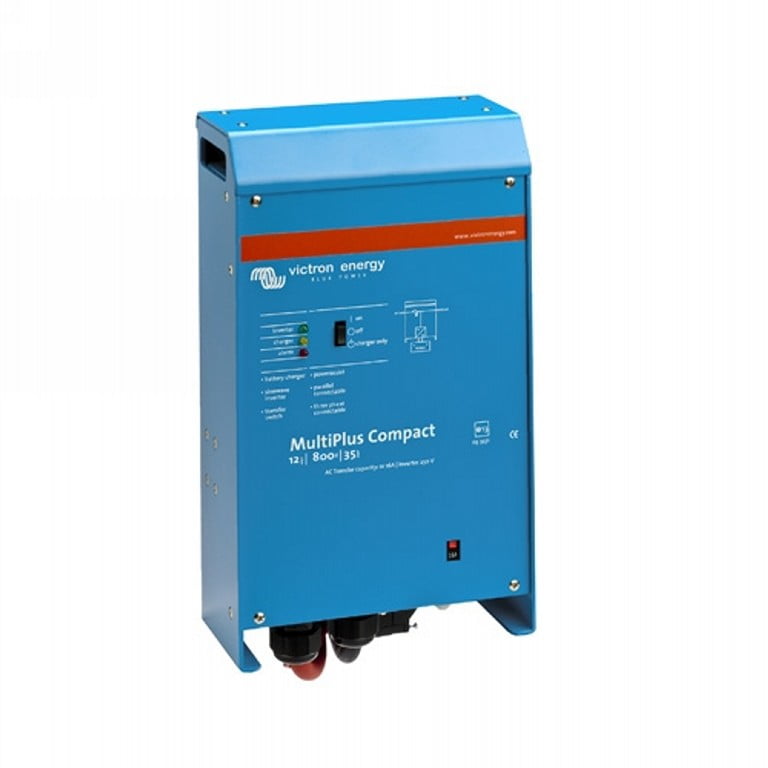

The Victron Multiplus inverter is short-circuit proof and protected against overheating, regardless of whether this is the result of overload or a high ambient temperature.
The MultiPlus is supplied without the necessary cables
A maximum generator or shore power can be set with the multi-control panel. The multiplus takes other power consumers into account and only uses power that is still € ˜over ‘for charging.
If peak power is often only needed for a short time, the MultiPlus ensures that insufficient power is immediately compensated. When the load decreases, backup power is used to charge the battery.
High start-up power
High start-up power is required to start loads with high inrush current. These are, for example, voltage converters for LED lamps, halogen lamps and power tools.
The power consumption of the inverter is reduced by about 70% at no load when the search mode is enabled. The search mode means that the inverter is switched off when there is no load or when it is very low. The inverter will then switch on briefly every 2 seconds.
The programmable relay is set as an alarm relay by default. This means that the relay will be de-energized in the event of an alarm or pre-alarm, for example if the inverter becomes too hot or the battery voltage is too low
|Input voltage (AC)||180-265VAC|
|Number of inputs (AC)||1|
|System voltage (DC)||12VDC|
|Output voltage (AC)||230VAC|
