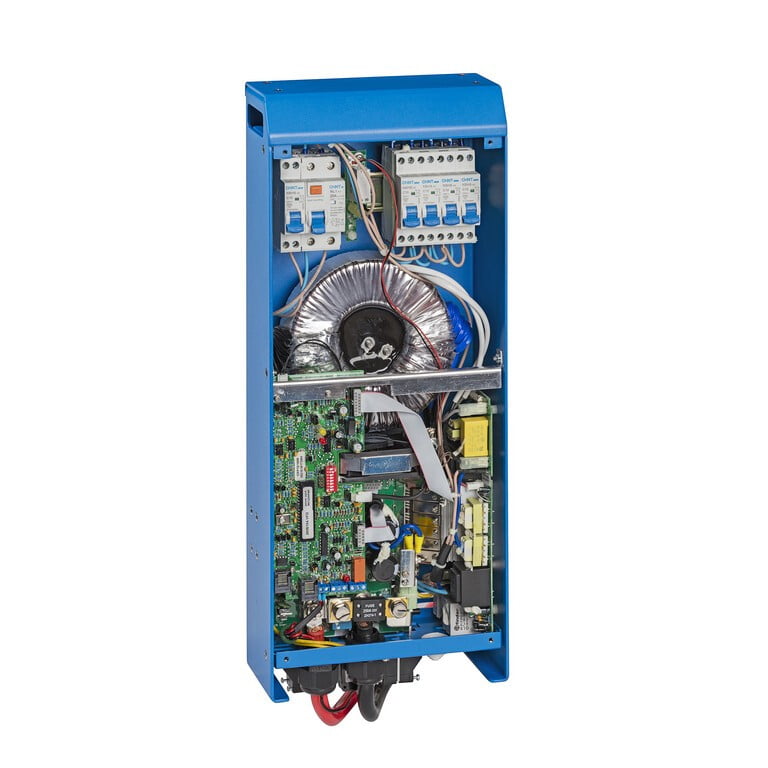

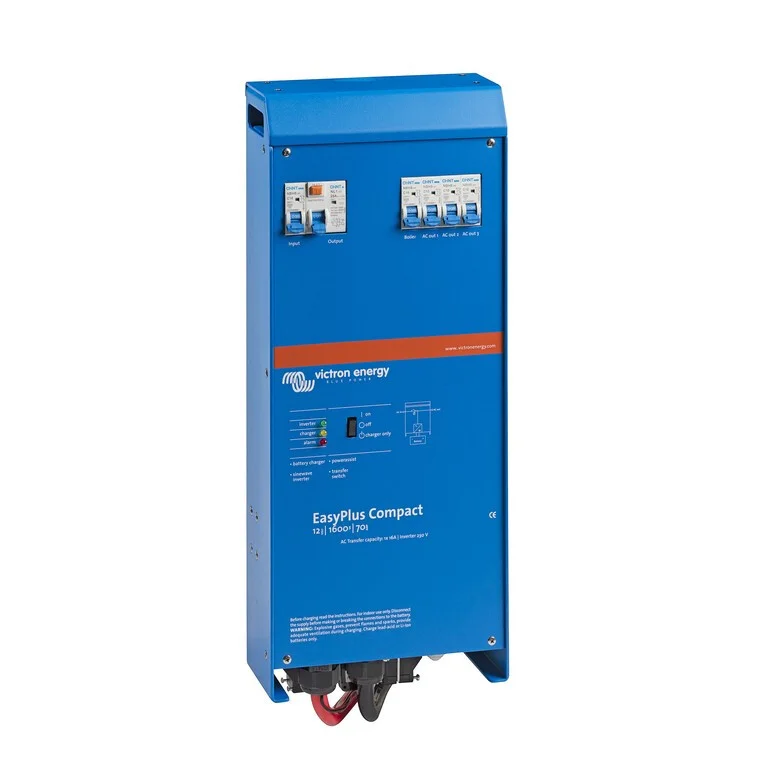

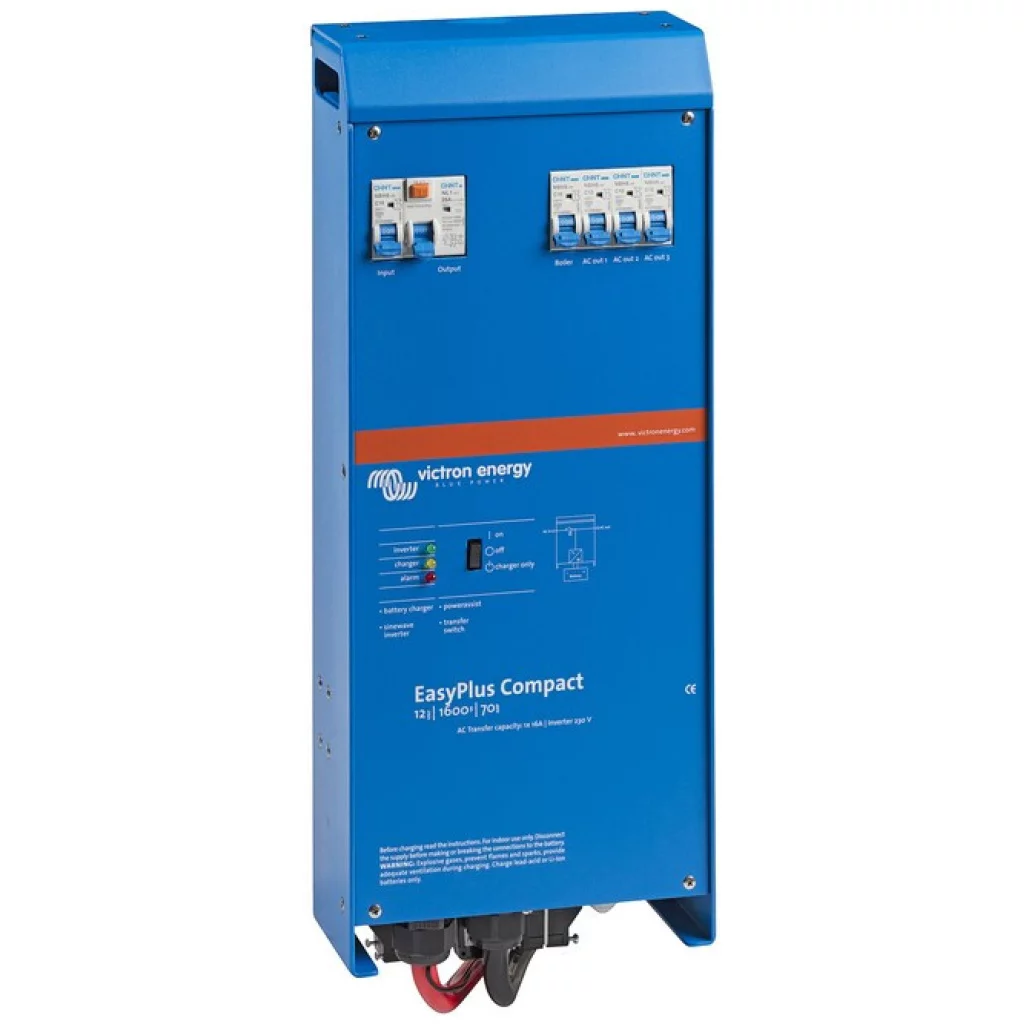

The EasyPlus is a multifunctional energy system that consists of a powerful sine wave inverter, a 4-stage battery charger, a switching device and AC group distribution. The EasyPlus is designed for people who want a complete energy system, but do not want to install separate components.
5 steps installation
The EasyPlus can be installed in five easy steps and will then be ready for use.
- Choose a suitable location for the EasyPlus
- Connect the shore / generator to the input and the outgoing groups to the EasyPlus
- Connect the control panel
- Connect the battery cables and the temperature sensor to the batteries
- Switch on the earth leakage circuit breaker, group distribution and inverter / charger and the system is ready for use
|Input voltage (AC)||180-265VAC|
|Number of inputs (AC)||1|
|System voltage (DC)||12VDC|
|Output voltage (AC)||230VAC|
