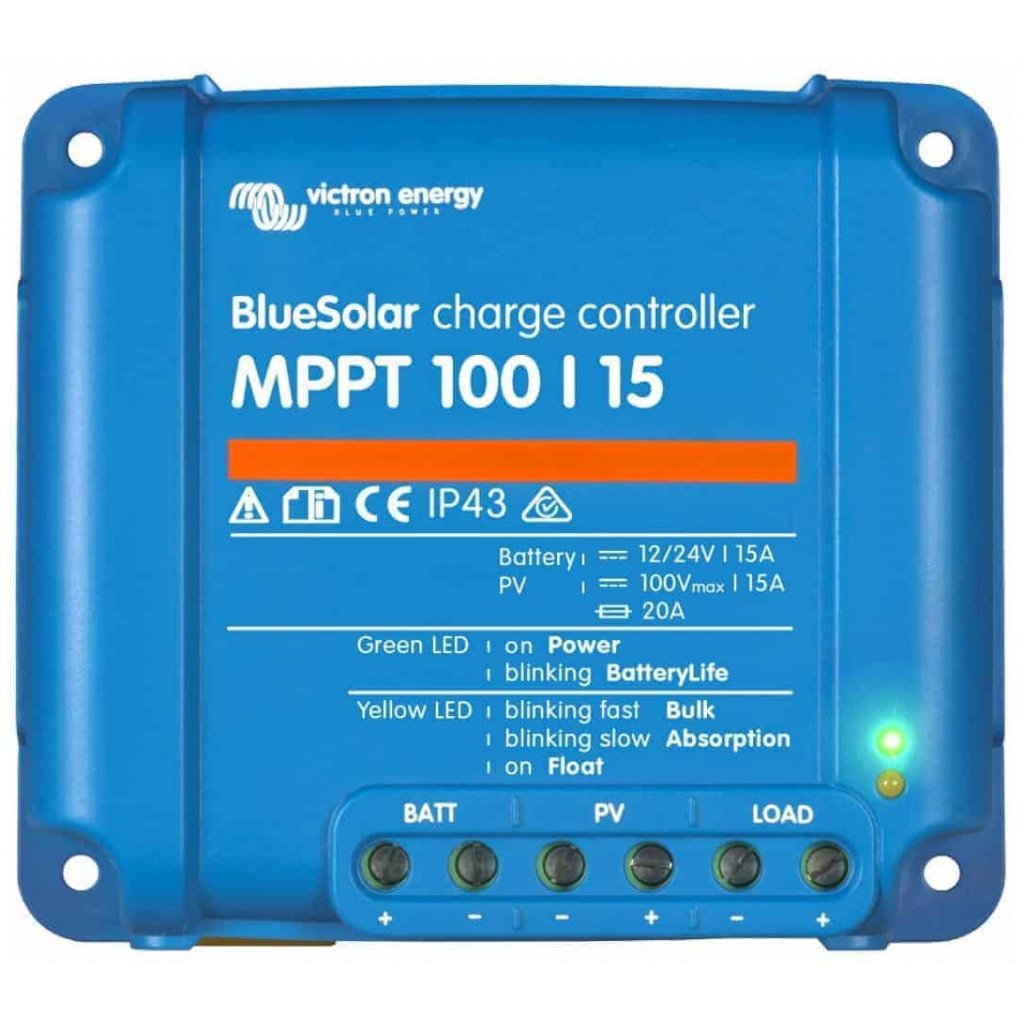

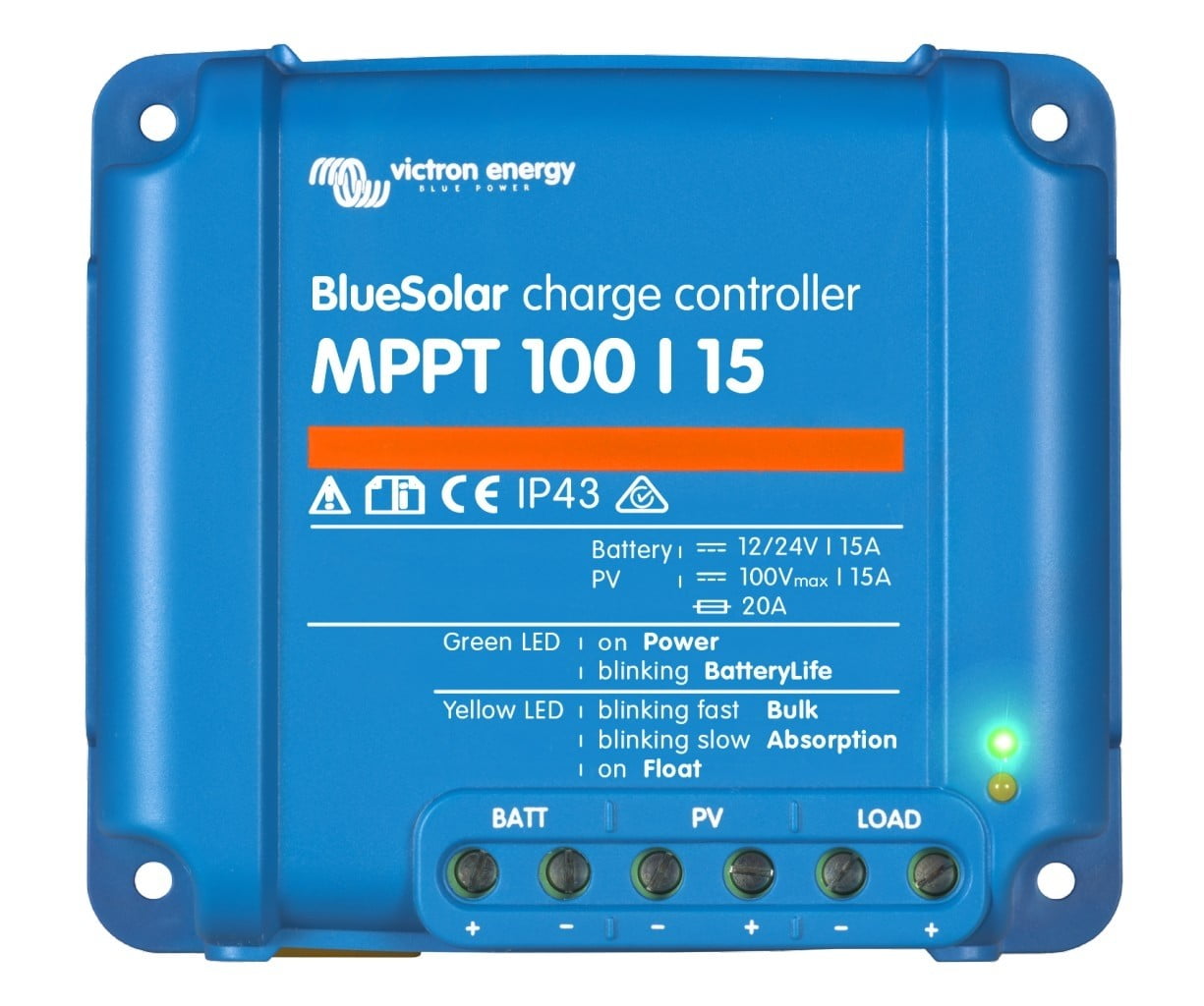

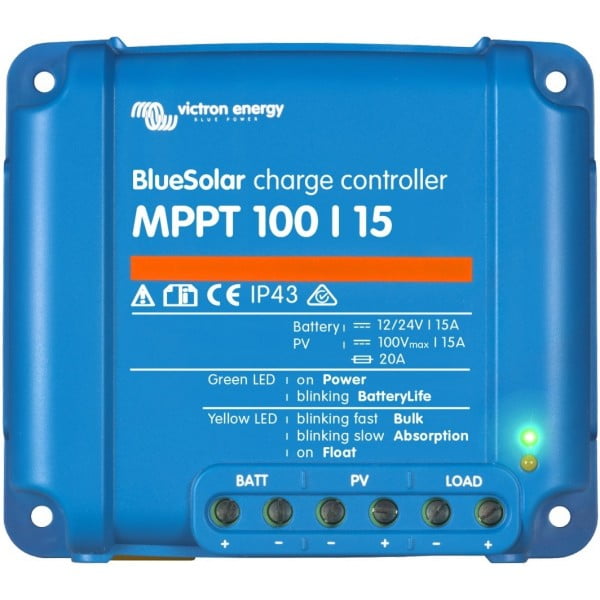

The Victron BlueSolar MPPT solar charger collects energy from the solar panels and stores it in batteries. With the latest and fastest technology, the energy east is maximized so that the batteries are fully charged in the shortest possible time.
For a wired data connection with a Color Control panel, Venus GX, PC or other devices, the BlueSolar MPPT has a VE.Direct connection
In the case of alternating shade, the power-voltage curve can contain two or more maximum power points. Conventional MPPTs usually use local MPP, which may not be the optimal MPP. The BlueSolar algorithm maximizes energy yield by using the optimal MPP.
If a solar charge controller cannot fully recharge the battery in 1 day, the result is often that the battery fluctuates between partially charged and fully discharged. This will cause irreparable damage to a lead-acid battery within weeks or months. The BatteryLife algorithm monitors the battery’s state of charge and, if necessary, slightly increases the load disconnect level until the solar energy is sufficient to charge the battery to full 100%. This will fully charge the battery about once a week.
Programmable battery charging algorithm
The charge controller starts a new charge cycle every morning when the sun rises. The battery charging algorithm is programmable with a set of default settings or user-defined settings.
|Output voltage (DC)||12 / 24VDC|
|IP class||IP21 drip proof|
